PS10-AL-1x(500-800) UV lamp electronic ballast
front page » Product display » Dimming ballast » PS10-AL-1x(500-800) UV lamp electronic ballast

loading

PS10-AL-1x(500-800) UV lamp electronic ballast

Availability:
Quantity:
Inquire Add to Basket

  • PS10 product series

  • 粤嘉电子

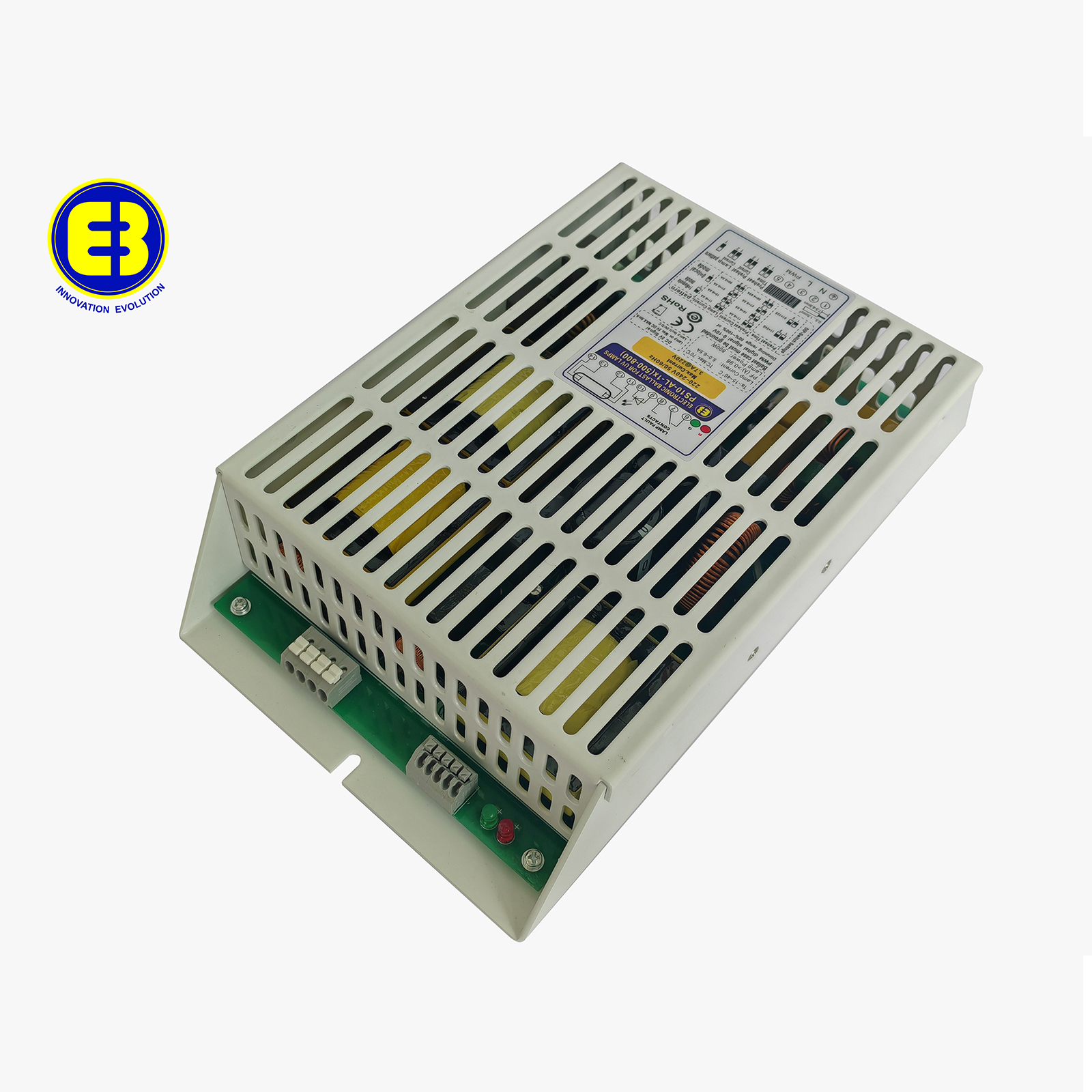

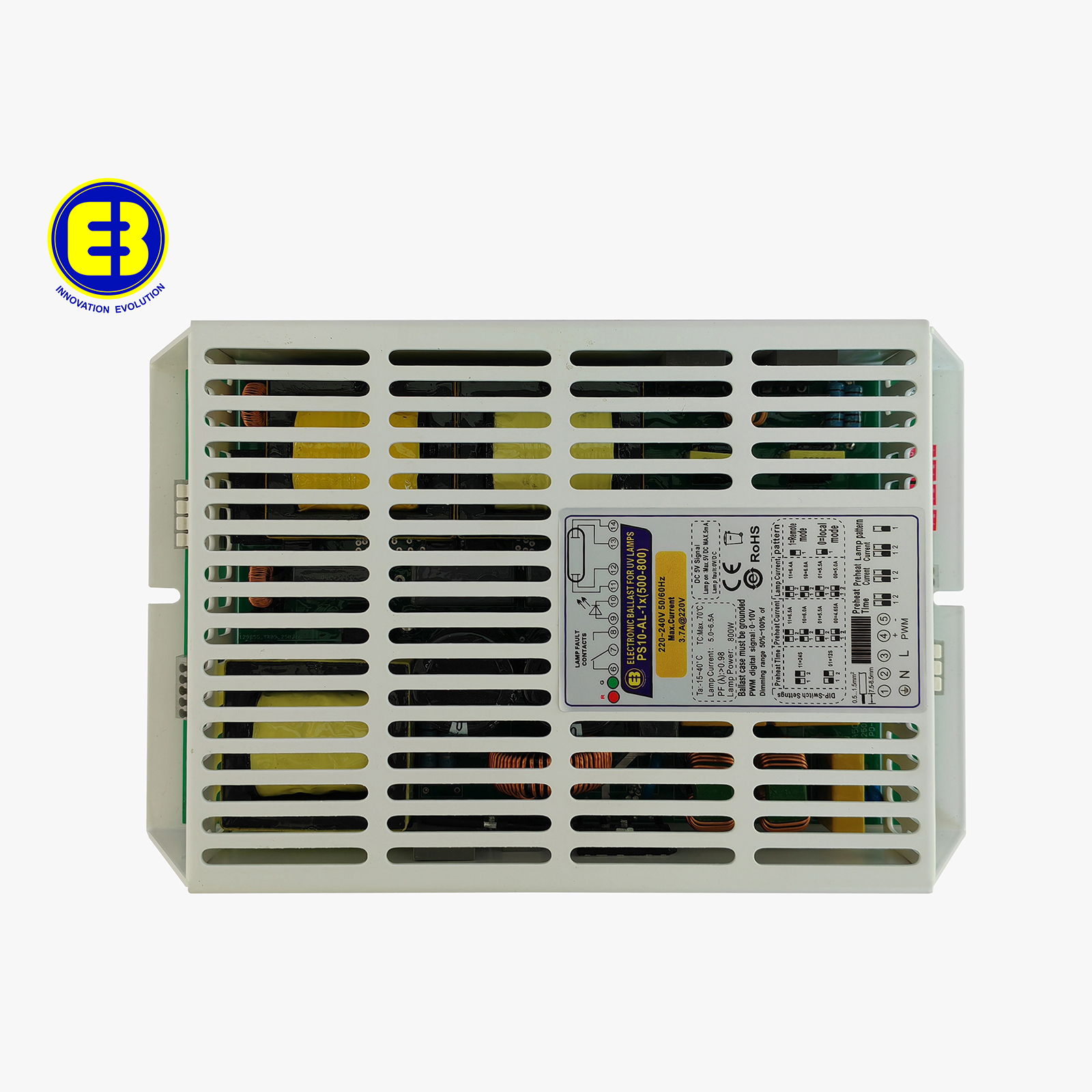

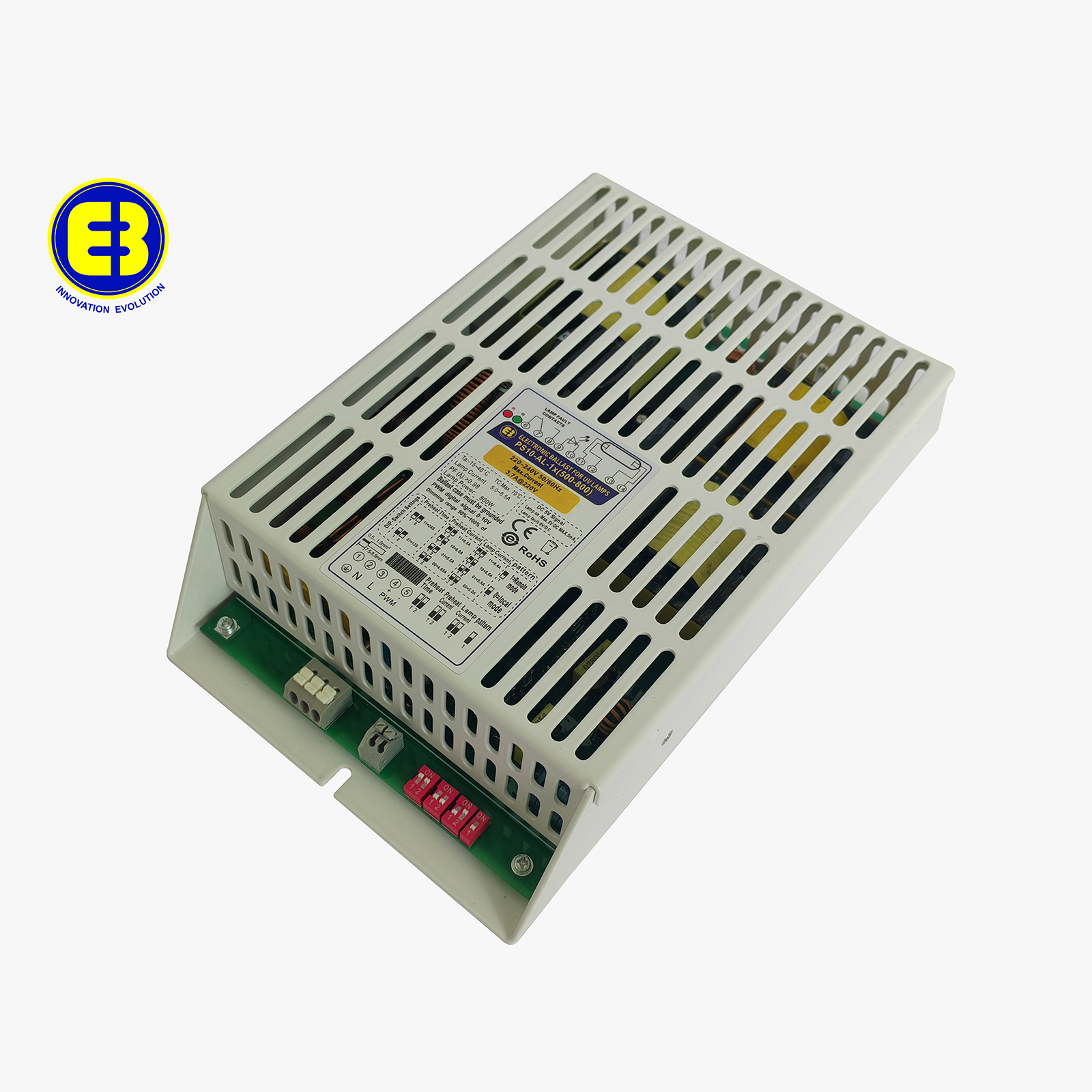

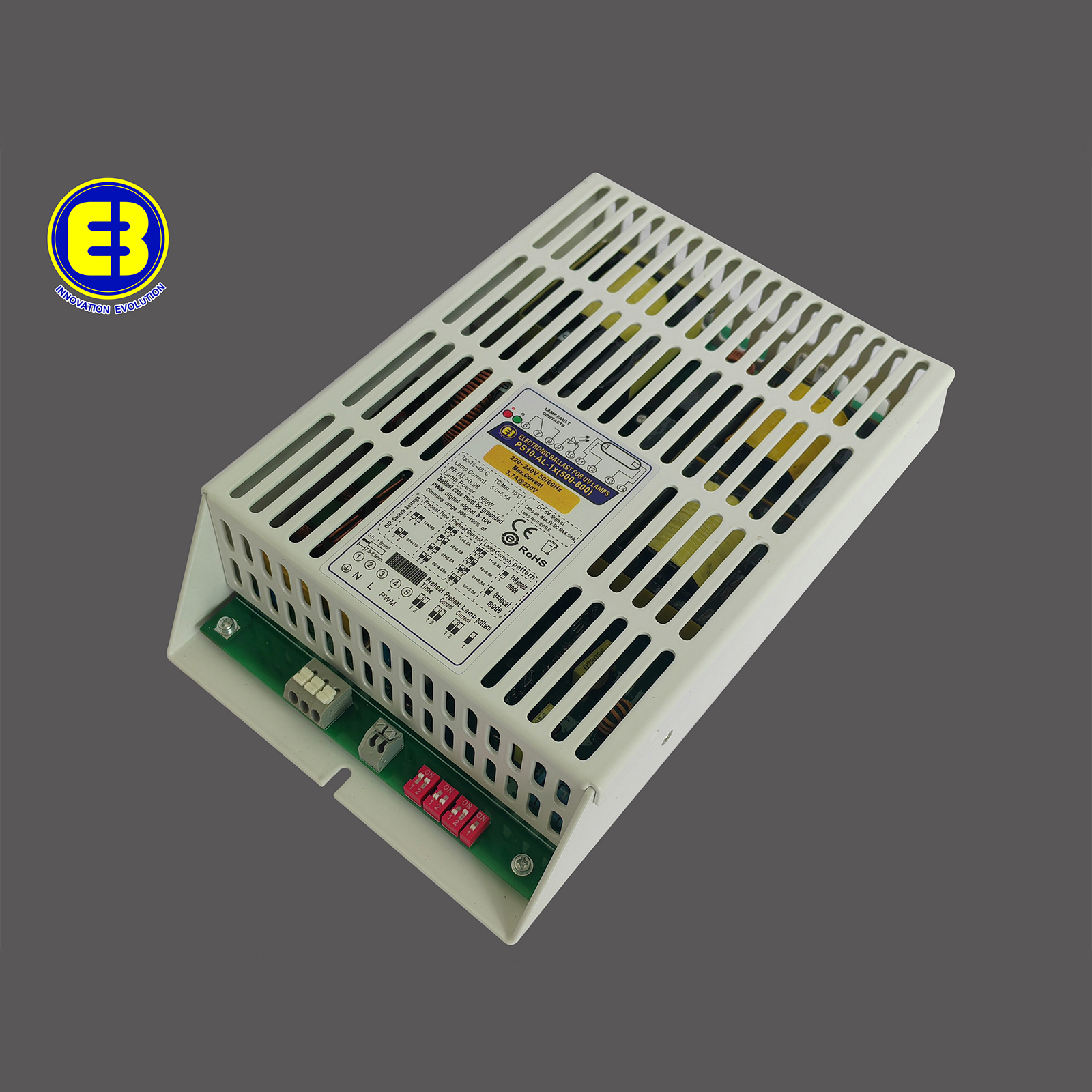

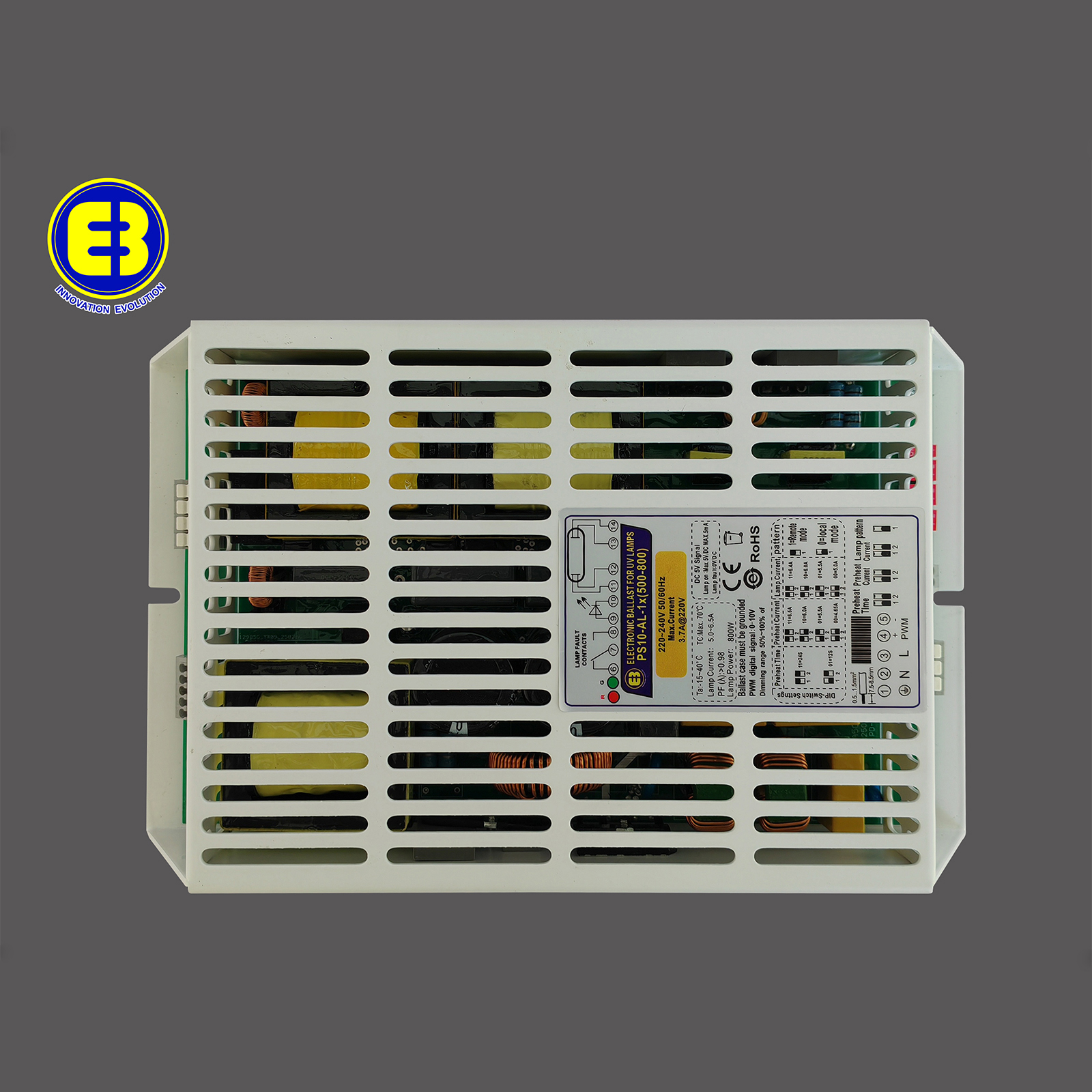

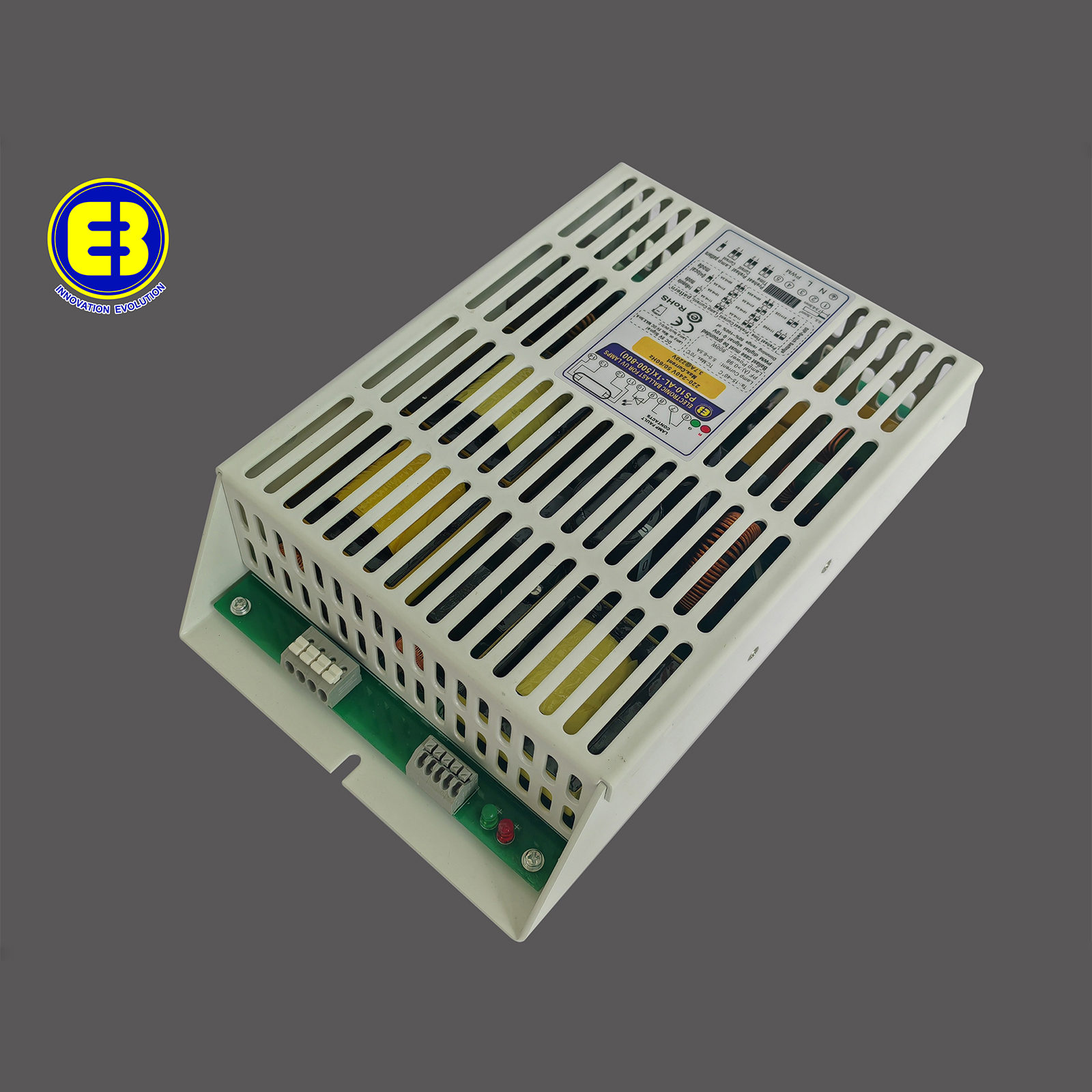

Ultraviolet lamp electronic ballast
Product model: PS10-AL-1x(500-800) Lamp output current: Optional current: 4.65A, 5.5A, 6.0A, 6.5A
Input power: 850W Lamp output power: 800W
Startup method:

Preheating start, suitable for frequent start

  1. Preheating optional time: 12S, 24S

  2. Optional currents for preheating: 5.0A, 5.5A, 6.0A, 6.4A
Dimming mode: PWM: 0-10V (brightness adjustment range 50%-100%)

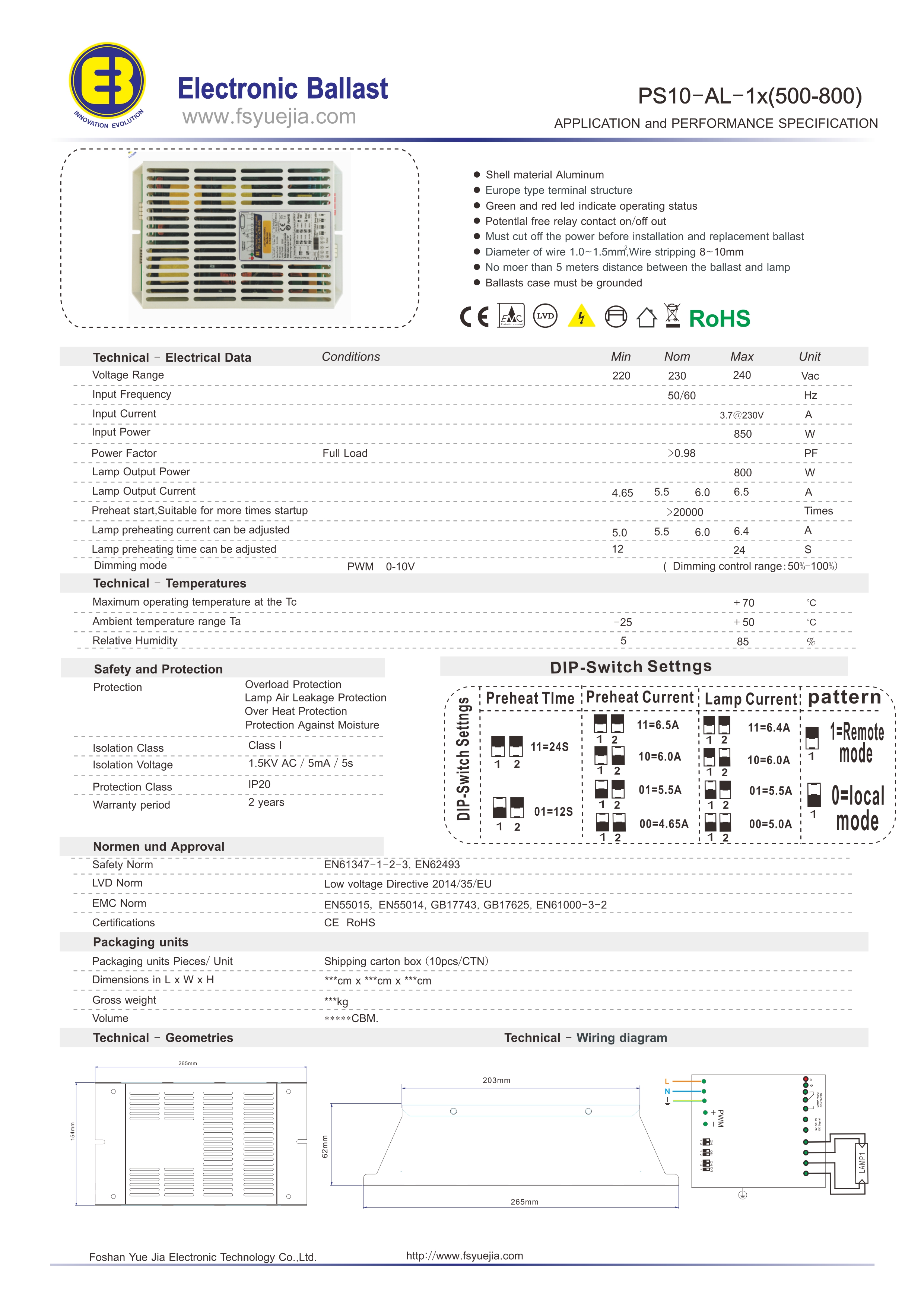

Product Specification Book: PS10-AL-1x(500-800)-  A1.1.pdf

PS10-AL-1x(500-800)- A1.1
